SX4006

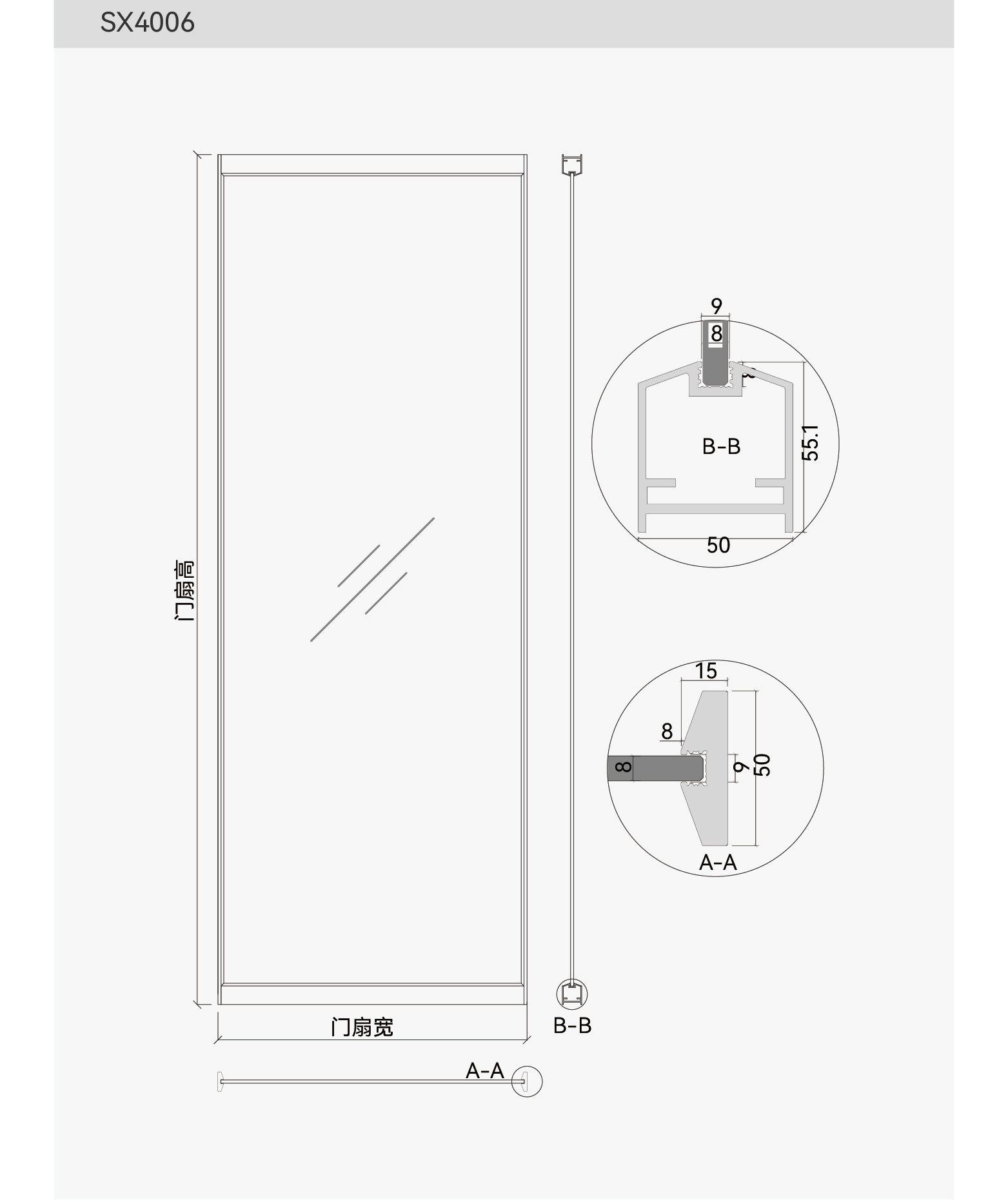

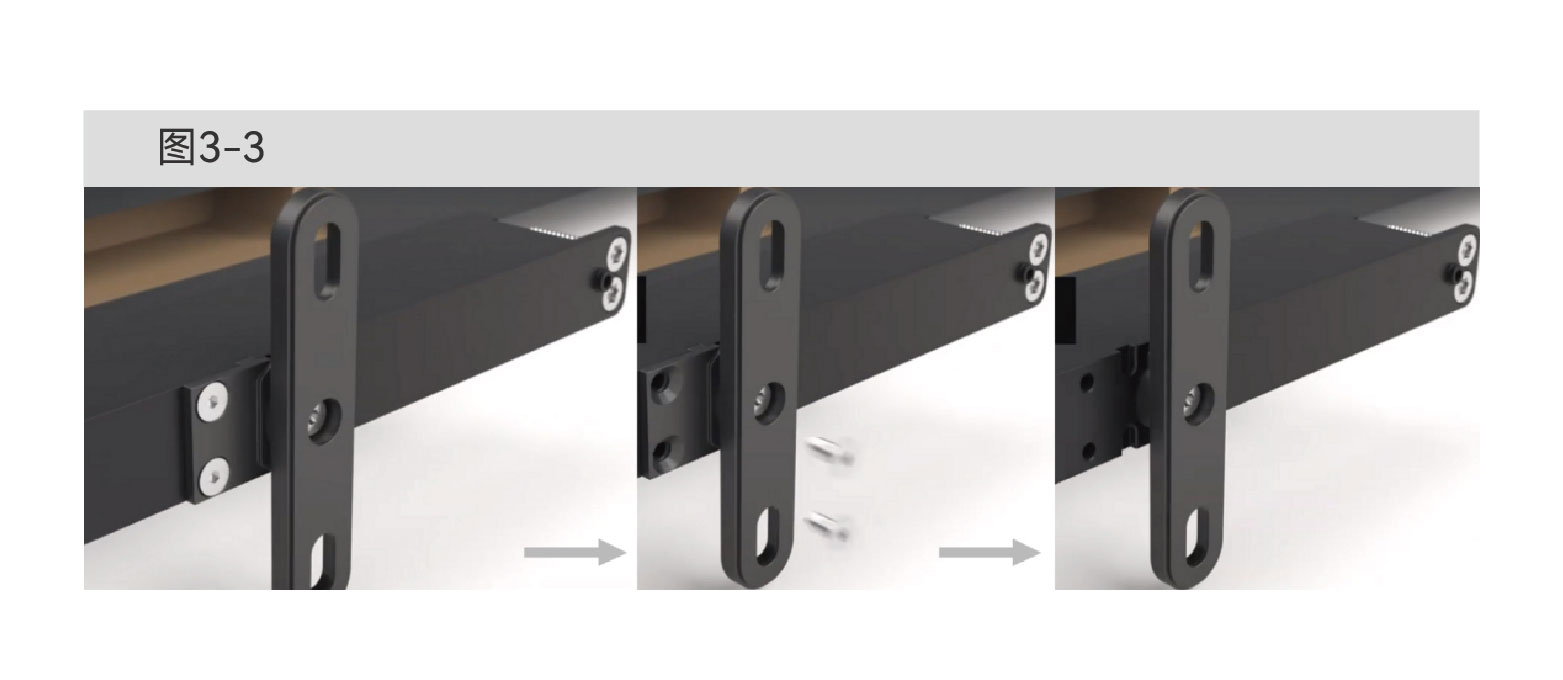

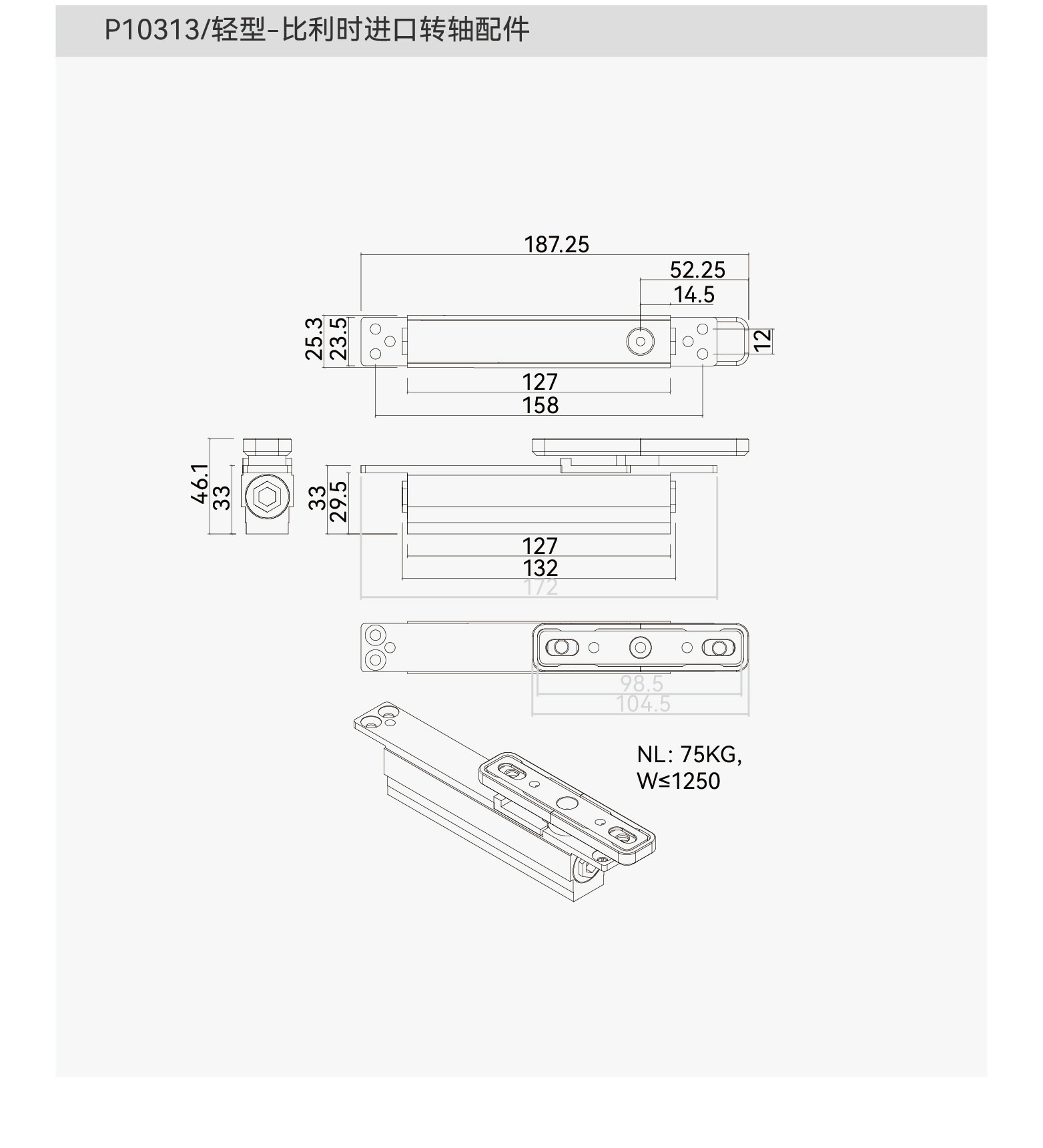

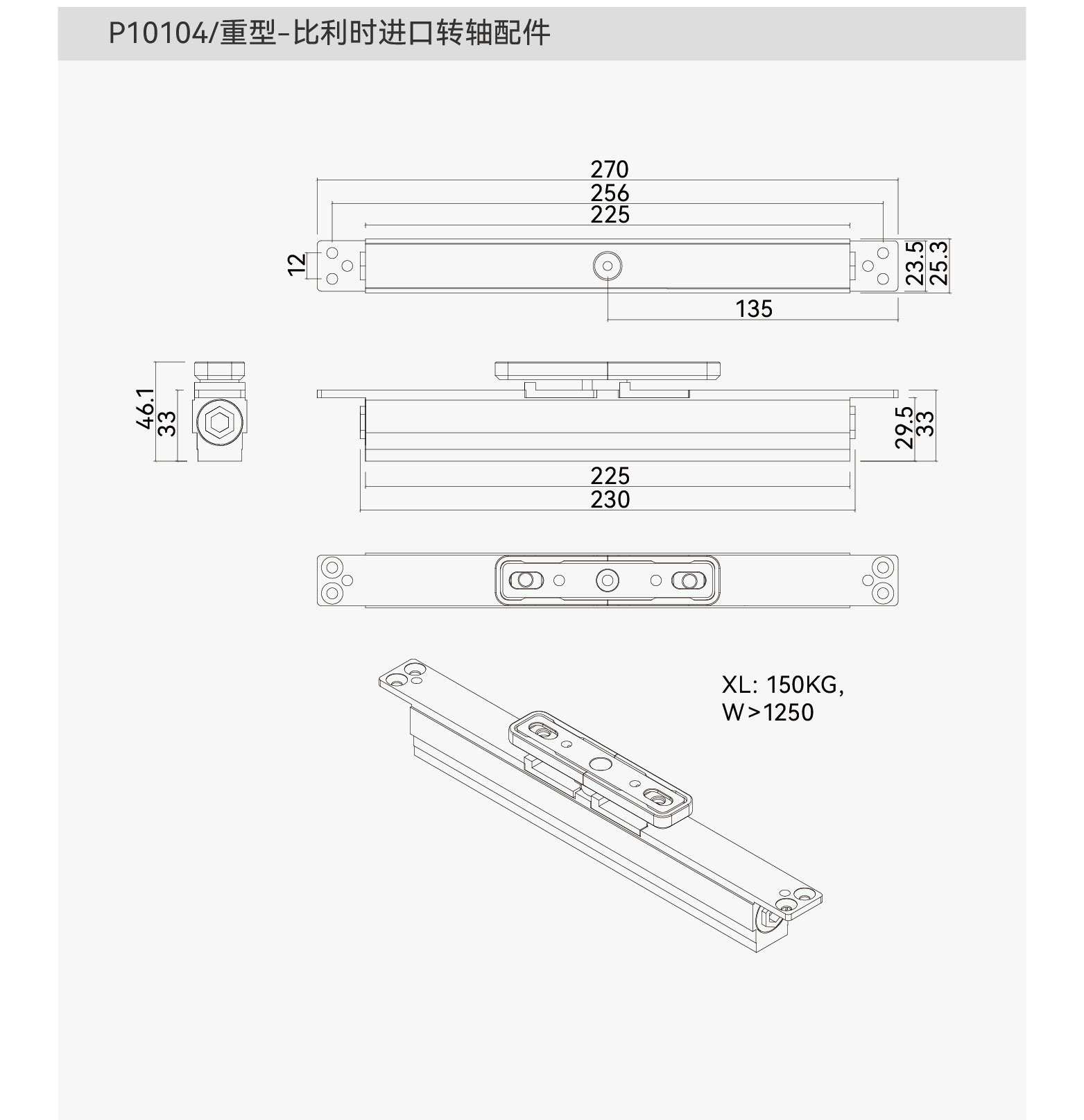

Flat mouth single glass door.Aluminum model A7367 vertical frame+A7368 horizontal top and bottom, glass slot width 9mm, equipped with 8mm tempered glass, door leaf thickness 50mm, using Belgian imported shaft accessories (there are two specifications: light and heavy, both can be positioned 90 o, and the shaft distance of heavy-duty imported shaft accessories cannot be less than 200 when making off axis). When the axis is centered, it can rotate ?? 90 o/360 o (the limit in the shaft accessory needs to be removed to achieve 360 o rotation, as shown in Figure 3-3). When the axis is off center, it can rotate ?? 90 o, with a hanging foot of 11mm. It can be optionally equipped with edge seals/door frames. If there is no upper seal, the top of the door opening should be reinforced and leveled with wooden boards. Optional integrated handle and magnetic silent lock body (lock function is no longer available when making 3 or more doors)
