SX407

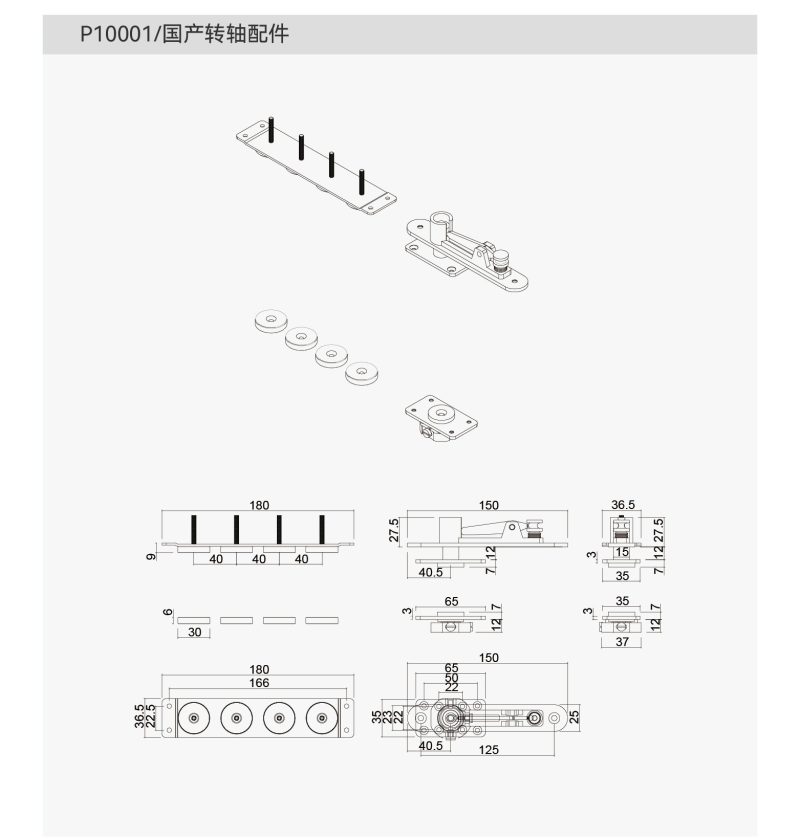

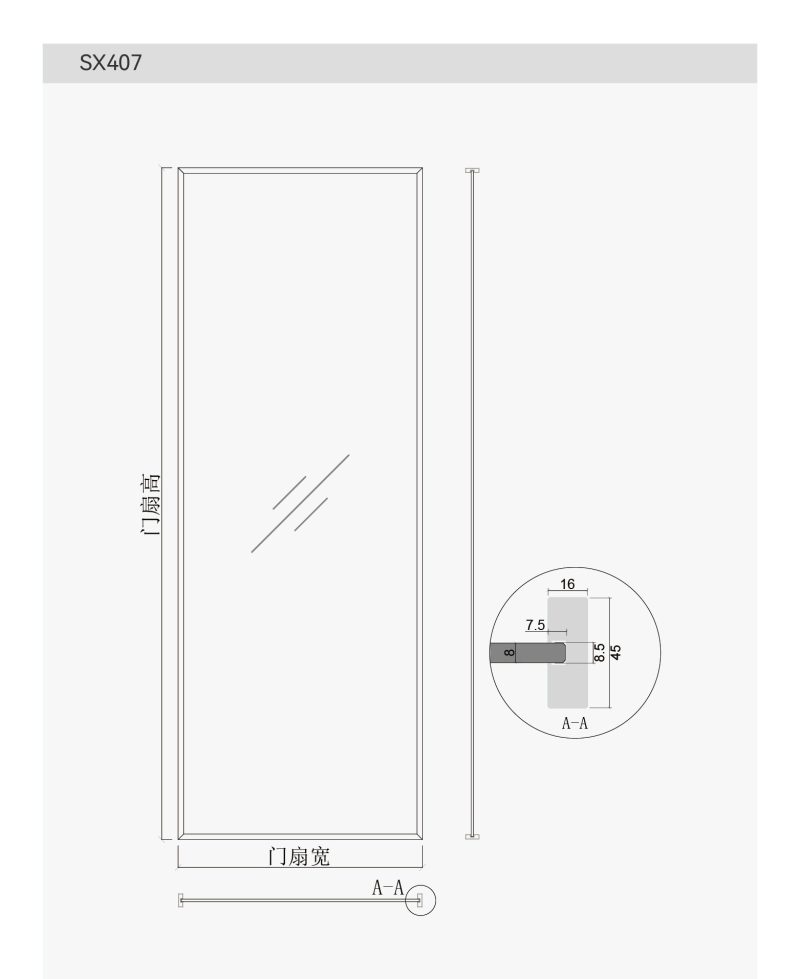

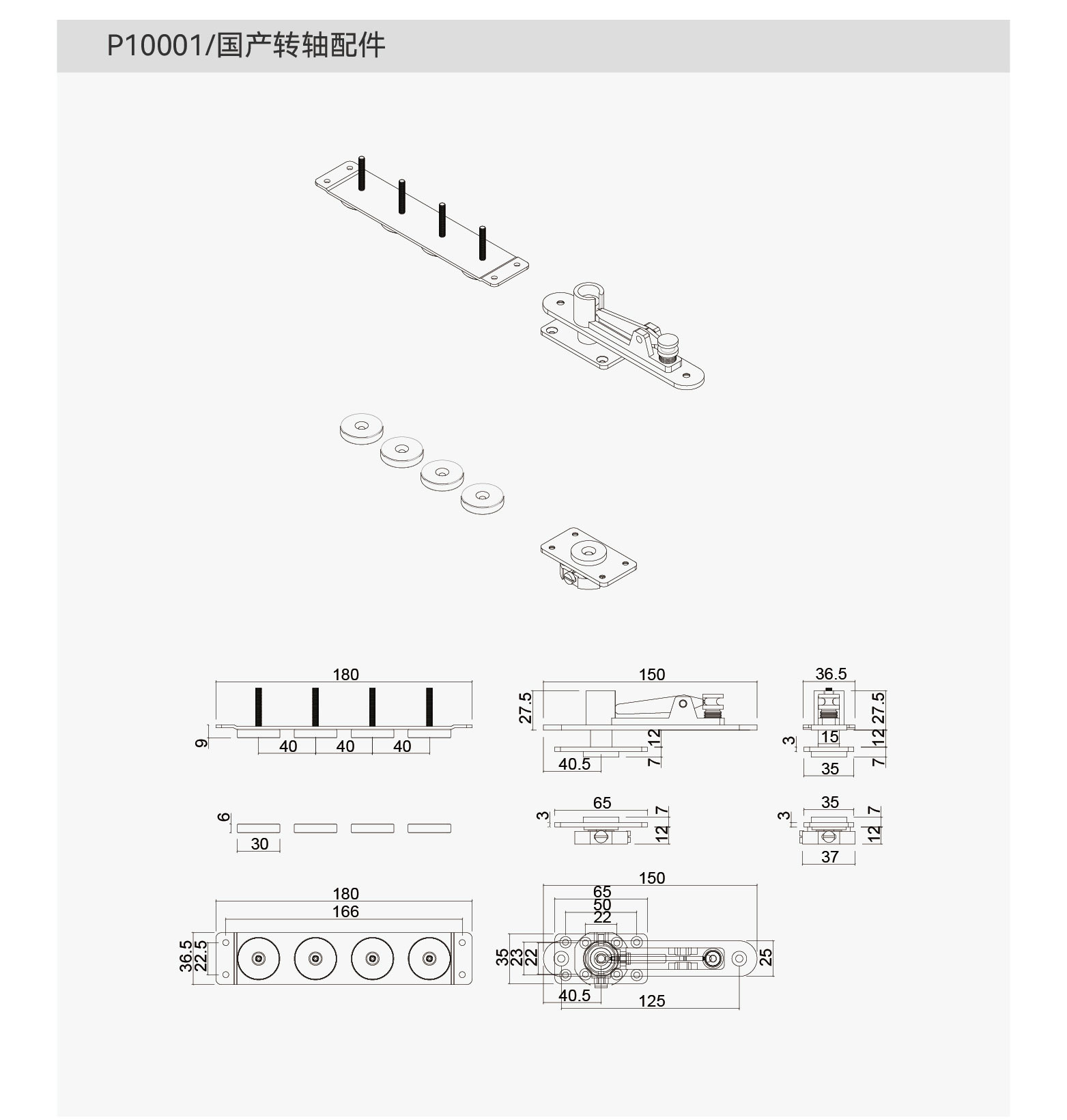

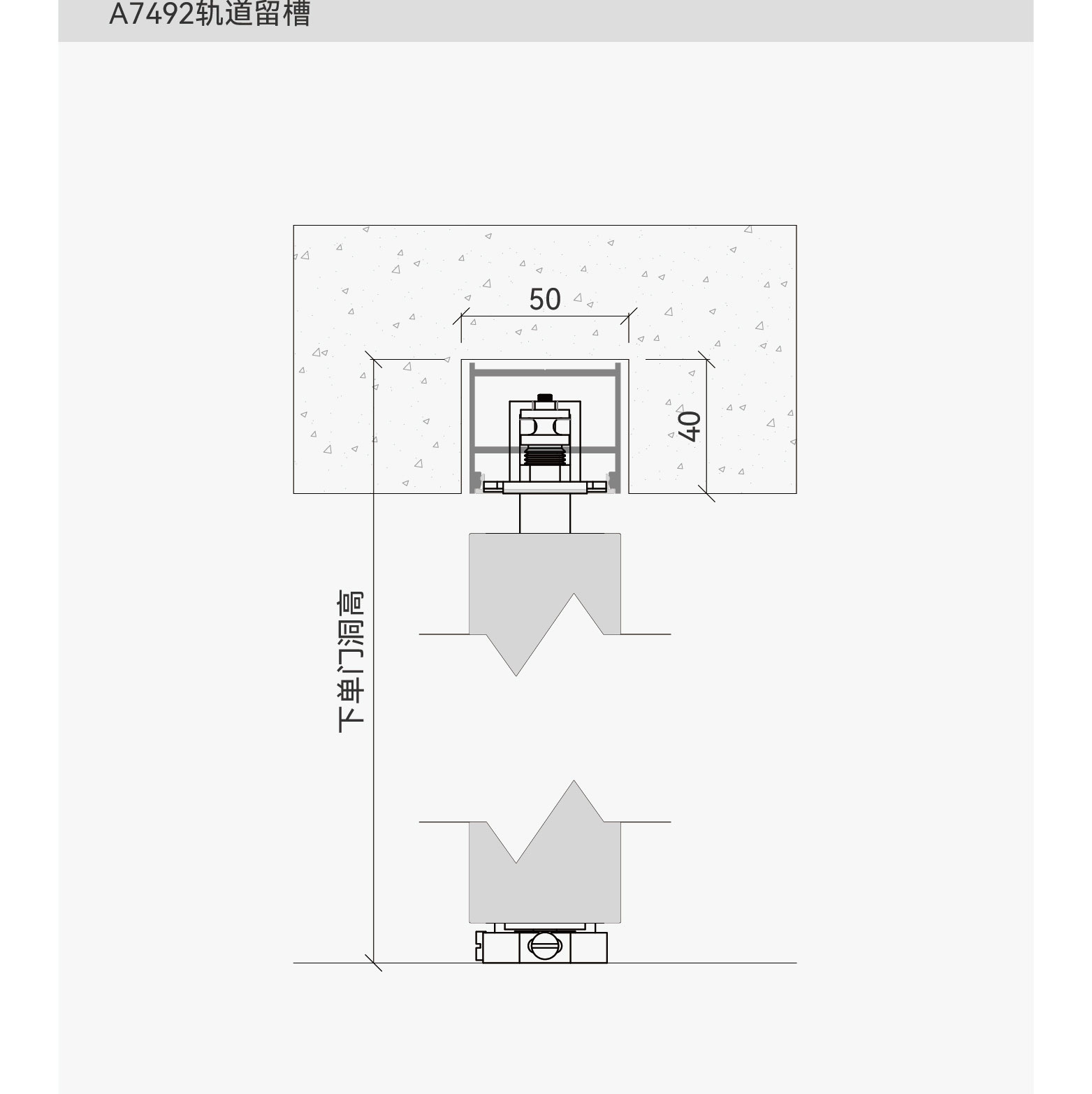

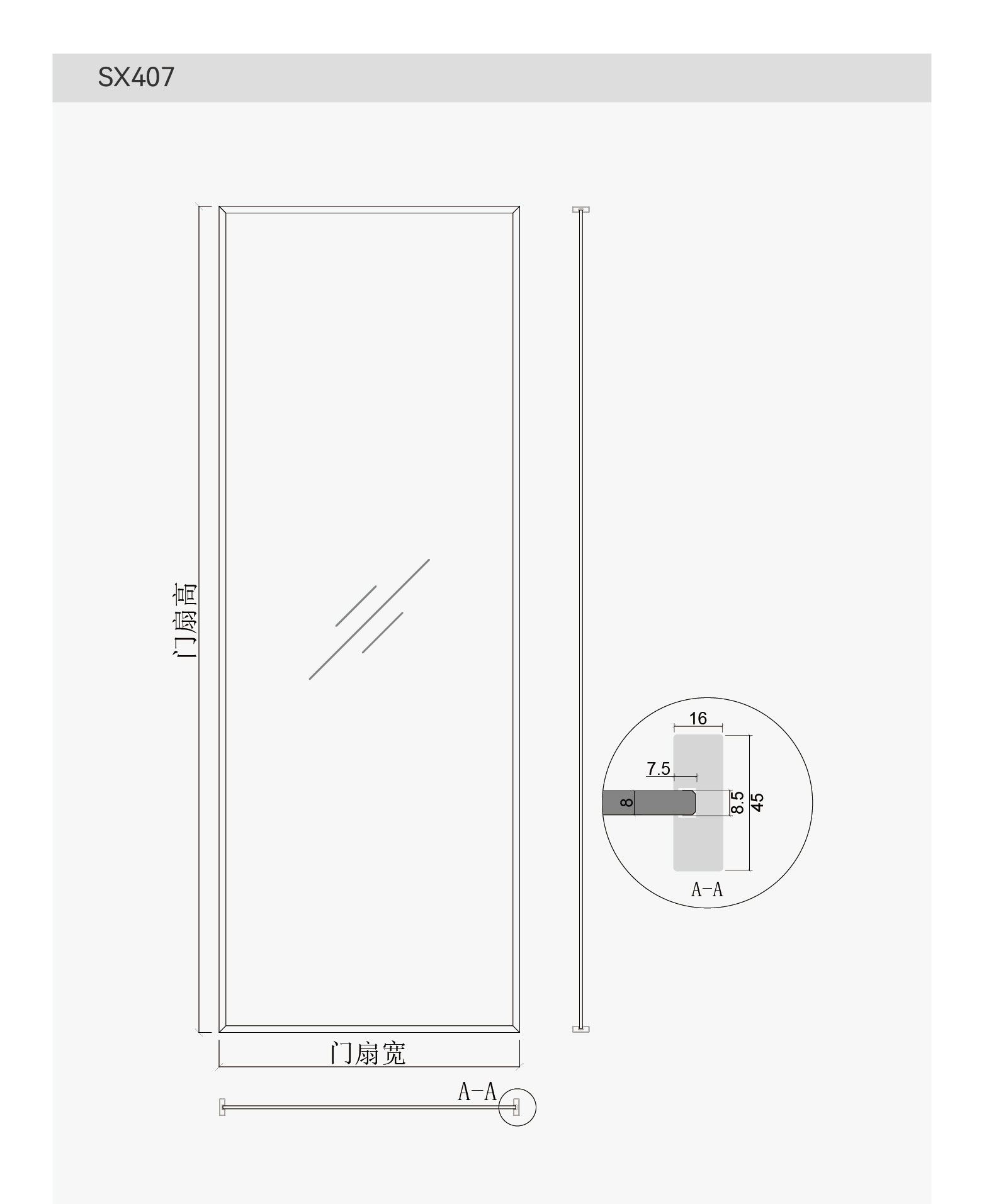

The door leaf is a flat single glass door with an aluminum frame A7592 and a glass groove width of 8.5mm. It is equipped with 8mm tempered glass and a door leaf thickness of 45mm. It comes standard with an upper rail A7492+A7493 cover plate, which can be concealed or exposed in the groove. It uses domestic pivot accessories (magnetic adsorption at 0 o, no 90 o positioning). It can rotate 360 o when it is centered and ?? 90 o when it is off center (infinite position, recommended value, not fixed, depending on the wheelbase and wall conditions). The hanging feet are 12mm. It can be optionally equipped with edge seals/door sleeves, and can be optionally equipped with integrated handles and magnetic silent lock bodies (no longer have the function of locking doors when making 3 or more leaves)
